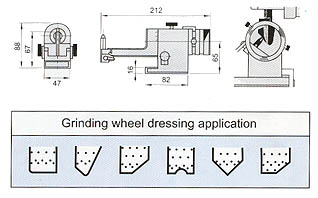

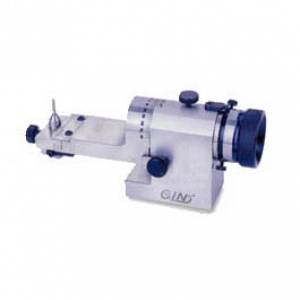

Mode KT50 Visual Universal Wheel Dresser
Adaptable on Surface grinder and universal tool grinder for dressing grinding
wheel into various cross sections of flat or curved shapes. By "SIGHTING" the
diamond point through the lens, radius and angles can easily be made perfectly
tangent-Visually-Even with diamond Likewise fadius can be blended together with
most unbeliveable accuracy
Main
Parameters |
Canter height |
------------- |
65mm |
Max. wheel diameter |
------------- |
200mm |
Max. convex radius |
------------- |
13mm |
Max.concave radius |
------------- |
25.4mm |
Dressing angle |
------------- |
95¡Æ -0¡Æ -85¡Æ |
Tangential travel |
------------- |
22.5mm |
|
|
237,000¿ø
|
390,000¿ø
|
913,000¿ø
|
234,000¿ø
|
349,000¿ø
|
|
